Box Guide Ways CNC vertical machine tools most effective on heavy parts

Category: Job Shop
Model: JSC-1400-BS

5 Axis CNC Machining Centers/CNC Milling Machine Tools/CNC Vertical Machine Tools

Job Shop CNC machines tools center/CNC machining tools center of Wise Hi Tech Industrial

Best CNC machining tools/CNC Machining Centers/CNC Milling Machines/CNC Machine Tools of Wise Hi Tech Industrial



Owns over 20 years experiences in Machining spare parts and components

Metal/Non-metal machining spare parts & components in processing from industrial fields by metal die Molds, plastic injection die molding, precision machinery, electronic machinery, power & electric machinery, automotive & motorcycle industries, bicycle industry, medical instrument and electronic device….that over 20 years experiences by operate the 5 axis CNC machining tools/5 axes CNC Machining Centers/5 axis CNC Milling Machines; 5/4 axis CNC vertical machining center tools/3 axis CNC Machine Tools/CNC lathes machine/CNC turning center/CNC drilling machines/CNC tapping machines/CNC grinders….etc.

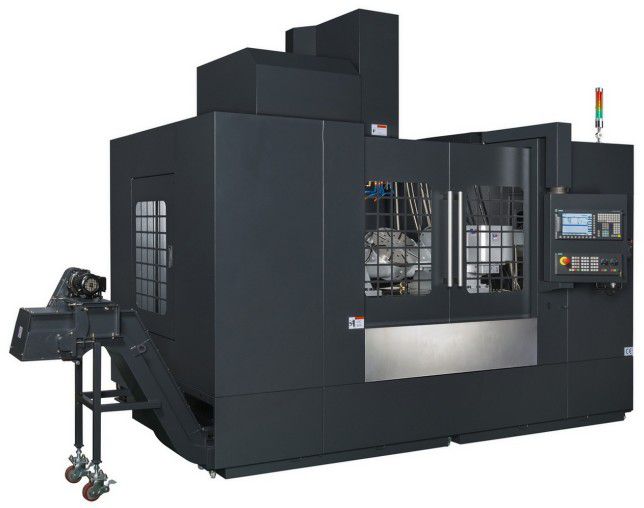

job shop cnc milling machines tool job shop cnc machining tools center job shop vertical drilling cnc machine tools jsc 1400 bs wise hi tech cnc

Job shop CNC milling machines tool/Job shop CNC machining tools center/Job shop vertical drilling CNC machine tools-JSC-1400-BS_Wise Hi Tech CNC



Completely manufacture 5/4/3 axis CNC machining tools/CNC Machining Centers/CNC Milling Machines; CNC Machine Tools series, 3 axes CNC Machining Tools Center series, vertical machining center/ linear guide ways CNC Machine Tools Center series, Box ways CNC Machining Tools Center series, double column CNC Machining Tools Center series, CNC Tapping Machine Tools Center series and CNC drilling Machining Tools Center series, C type/Bridge CNC Machine Tools Center series,

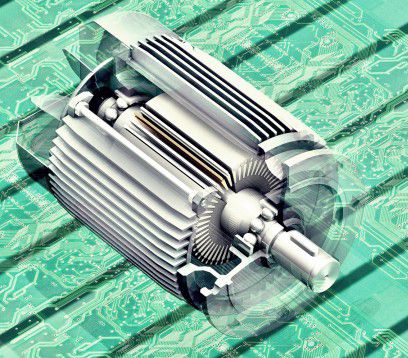

advanced mechanical motor drive job shop cnc milling machines tools job shop cnc drilling machining tools centers jsc 1400 bs wise hi tech cnc machines

Advanced mechanical motor drive of Job shop CNC milling machines tools/Job shop CNC drilling machining tools centers-JSC-1400-BS_Wise Hi Tech CNC



Performance Machining of Job shop CNC machining tools/ Job shop CNC Machining Centers/ Job shop Milling Machines tools



Advantages- Job shop CNC machining tools/ Job shop CNC Machining Centers/ Job shop Milling Machines tools by VMC_JSC-1400-BS



1) Owns the low wear & high & strength steel features of linear guide way & box way.

2) Balance the rapid speed feeding & heavy duty machining via linear guide way & box way.

3) Combine the high precision machining & high cutting capacity from linear guide way & box way.

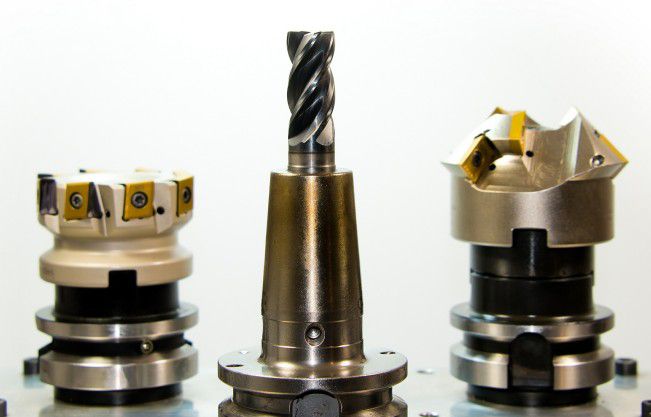

job shop cnc machine cutters job shop cnc machining toolings job shop milling toolings drilling cutter jsc 1400 bs wise hi tech industrial cnc

Job shop CNC machine cutters/Job shop CNC machining toolings/Job shop milling toolings/drilling cutter-JSC-1400-BS_Wise Hi Tech CNC machines



Specification –Job shop CNC machining tools/ Job shop CNC Machining Centers/ Job shop Milling Machines tools VMC_JSC-1400-BS



All specifications & design are subject to change without prior notice.

● : Standard accessories
△ : Depends on different or customized design
☆ : Optional accessories
–: Not Available for specific model



Guide Rail Type 3 - axes Box Guide Rail / Y – 4 guide ways

Travels

X - Axis 1400 mm
Y - Axis 700 mm
Z - Axis 650 mm
X / Y / Z Ballscrews φ40 x P12 mm
Spindle Nose to Table Surface 120 - 770 mm

Table

Table Size 1500 x 710 mm
T - Slot ( Size/Qty./Dist. ) 18 x 7 x 100 mm
Max. Load on Table 1200 kgs

Spindle

Spindle Speed 8000 rpm
Taper BT - 40
Spindle Drive Belt - Drive

Motor

Spindle Motor 11 / 15 kw
X / Y / Z Motor ( Fanuc ) 3 / 4 / 4 kw
X / Y / Z Motor ( Mitsubishi ) 3 / 3 / 3 kw

Feed Rates

Rapid Feed Rate, X / Y / Z 24 / 24 / 20 M/min
Cutting Feed Rate 10 M/min

ATC

Tool Capacity Arm / 24T pcs
Max. Tool Diameter Ø100 mm
Max. Tool Length 300 mm
Max. Tool Weight 10 kgs

Accuracy

Positioning Accuracy ±0.005 / 300 mm
Repeatability ±0.003 mm

Coolant

Coolant Pressure 50 - 80 psi
Coolant Tank Capacity 300 liter

Air & Power Supply

Air Source 6 - 8 kg/cm²
Power Supply 20 KVA

Machine

Machine Size ( L x W x H ) 380 x 300 x 350 cm
Packaging Size ( L x W x H ) 310 x 300 x 269 cm
Machine Net Weight ( approx. ) 8600 kgs
Machine Gross Weight ( approx. ) 8900 kgs

Standard Features

Rigid Tapping
RS-232 Interface
Auto Power Off
Auto Lubrication
Work Light
Heat Exchanger
Full Guarding Enclosure
Remote Hand wheel
Alarm Indicator
Cooling Device
Spindle Air Blast
Telescopic Cover on 3-axes
Operation Manual
Maintenance Manual
Tool Kits with Foot Pad Screws
Coil Conveyor ( L/R )

Optional Accessories

Spindle Speed Upgraded to 10000rpm / Direct-Drive
Spindle Speed Upgraded to 12000rpm/Direct drive
Spindle Speed Upgraded to 15000rpm/Direct drive -
Spindle Speed Upgraded to 20000rpm / Built-In -
Spindle Speed Upgraded to 24000rpm/Built-In -
Coolant Through Spindle (CTS)
Spindle Oil Cooler
A/C for Elec. Cabinet
3-axes Optical Scale
High Pressure Coolant
Chain Type Chip Conveyor
Scraper Type Chip Conveyor
Oil Skimmer
Oil Through Tool Holder
Oil Mist Lubrication Pump
Tool Length Measurement
Spindle Coolant Splash
Oil Mist Collector
Transformer
Spindle Shank / HSK-A63 -
